- Glass Wool

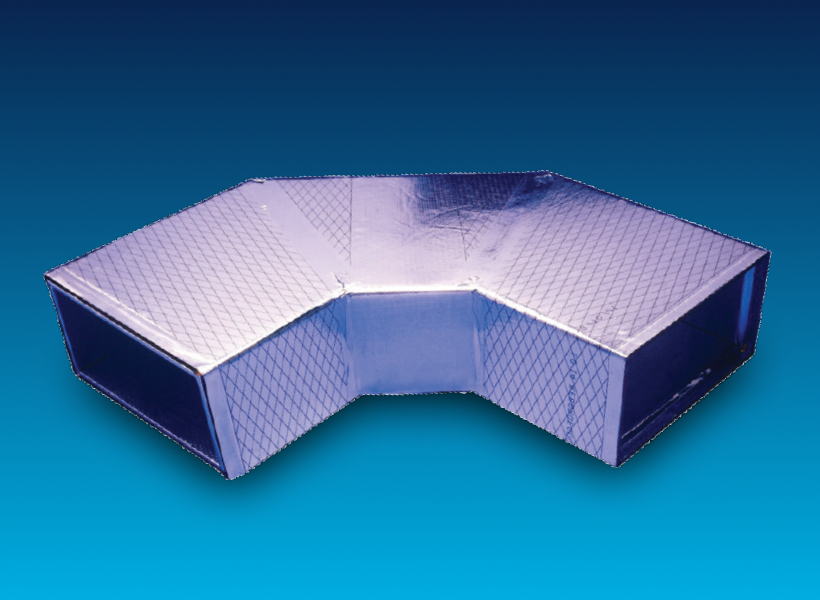

Cimaver Duct Board
-
High density rigid slab
-

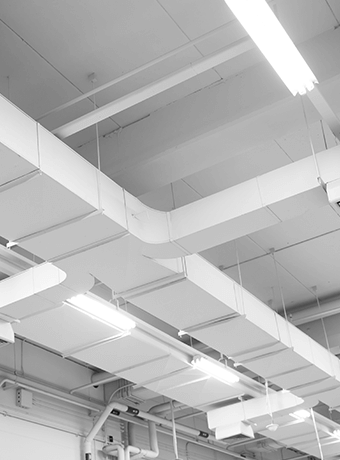

Self-supporting duct for HVAC
-
High level of air tightness
-
Reduces Energy Consumption by 15%
-
70% Lighter Than Metal Duct
-
5 Times Faster installation
-
Fabrication at Site
-
Minimum Material Waste
-
Customized sizes
-
Resistant to Mechanical Cleaning Methods
Range
- Comes in the form of long insulation boards with profiled edges
- Boards are converted to ducts
- Density : 70 to 80 kg/m3 (120 at profiled edges)
- Thickness : 25 mm
- Width : 1.19 m
- Length : 2.5 and 3 m
Facings
- Both side facing / lamination
- External : Aluminium + FGT
- Internal : 2 options
- Aluminium + FGT
- BGC + FGT
Basic Information
| Make / Brand | Climaver |
| Material | Resin bonded glasswool |
Product Performing Criteria
| Parameter | Values | Standards |
|---|---|---|
| Standard / Code | EN 12667, EN 12939 | |
| Thermal Conductivity (W/m.K) | 0.033 at 20oC mean temperature | IS 8183 |
| Thermal Resistance (m2 K / W) | Calculated as per thickness and thermal conductivity of insulation | |
| NRC | 0.35 to 0.85 | EN ISO 354, EN ISO 11654 |
| Air Tightness | Class D | EN 1507, EN 12237 |
| Resistance to Pressure (Pa) | 800 | EN 13403 |
| Maximum Air Speed (m/s) | 18 |
General Material Properties
| Parameter | Values | Standards |
|---|---|---|
| Non-combustibility | Non-combustible | BS 476, UL 181, EN 13501-1 |
| Reaction to Fire | Euroclass B-s1, d0 ; No significant contribution to fire growth, No Flashover, Insignificant smoke release , No flaming droplets or particles expected | EN 13501-1, EN 15715 |
| Water Vapour Resistance (m2.h.Pa/mg) | 140 | EN 12086 |
| Shot content | NIL |
Certifications and Approvals
| Environment | Fire | Health Safety | Standards Compliance |
|---|---|---|---|
|
|
|
|
